Customize training

In this section, we will see how to customize the model training.

Metrics¶

Built-in metrics¶

We can add metrics to be computed at each epochs during the training. First we define a list of metrics to be computed. In the following example, we will define precision and recall metrics for each class (i.e. from 0 to 5).

# We define a set of built-in metrics to be computed for each epochs
metrics = [
    cls(class_id=class_id)
    for class_id in range(class_nb)
    for cls in [keras.metrics.Precision, keras.metrics.Recall]
]

We then pass the metrics list to the metrics argument of compile(...), in the form of a dict where the key is the output for which to compute the metrics:

model.compile(
    loss={tgt_key: keras.losses.CategoricalCrossentropy()},
    optimizer=keras.optimizers.Adam(params.learning_rate),
    metrics={tgt_key: metrics},  # compute the metrics for `tgt_key`
)

When we will run the new code, we will see the metrics displayed on the output:

129/185 [===================>..........] - ETA: 0s
- loss: 0.7192
- ...
- val_softmax_layer_precision: 0.9400
- val_softmax_layer_recall: 0.8174
- val_softmax_layer_precision_1: 0.8095
- val_softmax_layer_recall_1: 0.8633
- val_softmax_layer_precision_2: 0.5635
- val_softmax_layer_recall_2: 0.2886
- val_softmax_layer_precision_3: 0.6867
- val_softmax_layer_recall_3: 0.5337
- val_softmax_layer_precision_4: 0.9014
- val_softmax_layer_recall_4: 0.6038
- val_softmax_layer_precision_5: 0.8496
- val_softmax_layer_recall_5: 0.6882

Question

Copy part_1_train.py to part_1_train_custom.py, and add the precision and recall metrics.

Custom metrics¶

We can also develop our own metrics. Here is an example with the f-score, that consist in the harmonic mean of the precision and recall.

$FScore=2.\frac{Pre*Rec}{Pre+Rec}$

We will implement our own FScore class, inheriting from keras.metrics.Metric to compute the F-Score.

mymetrics.py

import keras


@keras.saving.register_keras_serializable()
class FScore(keras.metrics.Metric):
    """Custom metric for F1-Score class vs all."""

    def __init__(self, class_id, name=None, **kwargs):
        if not name:
            name = f"f_score_{class_id}"
        super().__init__(name=name, **kwargs)
        self.class_id = class_id
        self.precision_fn = keras.metrics.Precision(class_id=class_id)
        self.recall_fn = keras.metrics.Recall(class_id=class_id)

    def update_state(self, y_true, y_pred, sample_weight=None):
        self.precision_fn.update_state(y_true, y_pred)
        self.recall_fn.update_state(y_true, y_pred)

    def result(self):
        p = self.precision_fn.result()
        r = self.recall_fn.result()
        return keras.ops.divide_no_nan(2 * p * r, p + r)

    def reset_state(self):
        # we also need to reset the state of the precision and recall objects
        self.precision_fn.reset_state()
        self.recall_fn.reset_state()

    def get_config(self):
        base_config = super().get_config()
        return {**base_config, "class_id": self.class_id}

As you can see, our class implements update_state() to update the internal variables, and reset_state() to clear all internal variables. The result (i.e. the F-Score) is returned in result().

Question

Create mymetrics.py and copy/past the code for FScore provided above,
Edit part_1_train_custom.py to add the F-Score metrics for each classes.

Solution

Import our new metric class in our main code:

from mymetrics import FScore

And then we can append the metric to the metrics list:

# Another set of metrics with our own metric class
metrics += [
    FScore(class_id=class_id, name=f"fscore_cls{class_id}")
    for class_id in range(class_nb)
]

Callbacks¶

In keras, a callback is an object that can perform actions at various stages of training (e.g. at the start or end of an epoch, before or after a single batch, etc). We will introduce a few useful callbacks in the following sections.

Model selection¶

The current code uses the default settings of keras, which is to export the model every epochs. Now we use the keras.callbacks.ModelCheckpoint keras callback to save the model only when the loss reaches a new minimum over the validation dataset.

save_callback = keras.callbacks.ModelCheckpoint(
    params.model,  # model file path (.keras file)
    save_best_only=True,  # save only the best models
    monitor="val_loss",  # metric or loss to monitor
    mode="min",  # when a new min is reached
    verbose=2,  # log something when saving
)

Question

Use the custom model selection loss reference: for instance, instead of the min loss value, save the model when the FScore metric reaches a new max for the class 1.

Tensorboard¶

Tensorboard is very useful to monitor in real time your training. In this section, we provide a very simple example to show how it can be used to monitor the metrics during the training. Tensorboard and TensorFlow summaries can be also used for other objects, like images, etc.

To add summaries to your training, use an instance of the keras built-in keras.callbacks.TensorBoard callback.

tb_callback = keras.callbacks.TensorBoard(log_dir=params.log_dir)

Fit() with callbacks¶

Callbacks are provided to the fit() function using the callbacks argument, in the form of a list of callbacks. To use the previously created callbacks, we pass them to fit():

model.fit(
    ds_train,
    epochs=params.epochs,
    validation_data=ds_valid,
    callbacks=[save_callback, tb_callback],
)

Running tensorboard¶

To start tensorboard, you can run a second otbtf docker image with port 6006 open, then run the following:

tensorboard --logdir /data/logs/ --bind_all

To access the tensorboard, just open http://localhost:6006 in your web browser.

Info

In linux environment you can start tensorboard in command-line with the port 6006 open, looking in the /data/logs/ directory for logs, using the following command (replace $DATA_DIR with your mount point):

docker run -ti -v $DATA_DIR:/data -p 6006:6006 mdl4eo/otbtf tensorboard --logdir /data/logs/ --bind_all

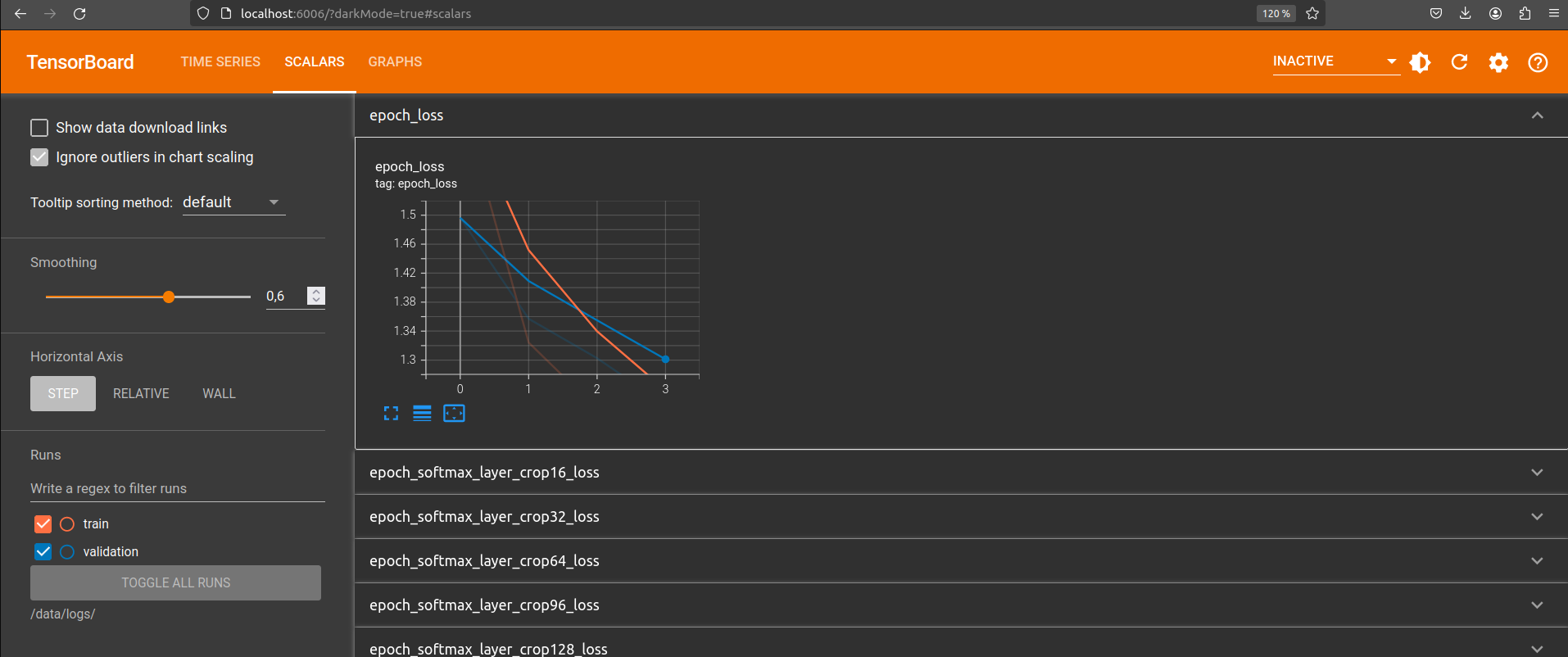

Tensorboard

Note

If tensorbard is running on another server, just replace localhost with your server URL or IP address.

Question

Edit part_1_train_custom.py:

Add the model selection callback
Add the tensorboard callback
Add the command line argument log_dir to the parser, to specify the logs folders to store the summaries for tensorboard.

Run the code using /data/logs as tensorboard summaries folder:

python part_1_train_custom.py --model /data/models/model1.keras --log_dir /data/logs/model1

Observe the scalar summaries in TensorBoard

Solution

import argparse
import otbtf
import keras
from mymetrics import FScore


class_nb = 6  # number of classes
inp_key = "input"  # model input
tgt_key = "estimated"  # model target


def dataset_preprocessing_fn(sample):
    return {
        inp_key: sample["img"],
        tgt_key: otbtf.ops.one_hot(labels=sample["labels"], nb_classes=class_nb),
    }


def create_dataset(img, labels, batch_size=8):
    otbtf_dataset = otbtf.DatasetFromPatchesImages(
        filenames_dict={"img": img, "labels": labels}
    )
    return otbtf_dataset.get_tf_dataset(
        batch_size=batch_size,
        preprocessing_fn=dataset_preprocessing_fn,
        targets_keys=[tgt_key],
    )


# Training dataset
ds_train = create_dataset(["/data/a_img_10m.tif"], ["/data/a_labels.tif"])
ds_train = ds_train.shuffle(buffer_size=100)

# Validation dataset
ds_valid = create_dataset(["/data/b_img_10m.tif"], ["/data/b_labels.tif"])


def conv(inp, depth, kernel_size, name, activation="relu"):
    conv_op = keras.layers.Conv2D(
        filters=depth,
        kernel_size=kernel_size,
        strides=1,
        activation=activation,
        padding="valid",
        name=name,
    )
    return conv_op(inp)


pool = keras.layers.MaxPool2D(pool_size=(2, 2))


class SimpleCNNModel(otbtf.ModelBase):
    """ " This is a subclass of `otbtf.ModelBase` to implement a CNN"""

    def normalize_inputs(self, inputs):
        """This function nomalizes the input, scaling values by 1e-4"""
        return {inp_key: keras.ops.cast(inputs[inp_key], "float32") * 1e-4}

    def get_outputs(self, normalized_inputs):
        """This function implements the model"""
        inp = normalized_inputs[inp_key]
        net = conv(inp, 16, 5, "conv1")  # 12x12x16
        net = pool(net)  # 6x6x16
        net = conv(net, 32, 3, "conv2")  # 4x4x32
        net = pool(net)  # 2x2x32
        net = conv(net, 64, 2, "feats")  # 1x1x32

        # Classifier
        estim = conv(net, class_nb, 1, "softmax_layer", activation="softmax")
        argmax_op = otbtf.layers.Argmax()

        return {
            tgt_key: estim,
            "estimated_labels": argmax_op(estim),  # additional output: class id
            "features": net,  # additional output: features
        }


parser = argparse.ArgumentParser(description="Train a CNN model")
parser.add_argument("--model", required=True, help="model path")
parser.add_argument("--log_dir", required=True, help="log directory")
parser.add_argument("--batch_size", type=int, default=4)
parser.add_argument("--learning_rate", type=float, default=0.0002)
parser.add_argument("--epochs", type=int, default=100)
params = parser.parse_args()

model = SimpleCNNModel(dataset_element_spec=ds_train.element_spec)

# We define a set of built-in metrics to be computed for each epochs
metrics = [
    cls(class_id=class_id)
    for class_id in range(class_nb)
    for cls in [keras.metrics.Precision, keras.metrics.Recall]
]
# Another set of metrics with our own metric class
metrics += [
    FScore(class_id=class_id, name=f"fscore_cls{class_id}")
    for class_id in range(class_nb)
]

model.compile(
    loss={tgt_key: keras.losses.CategoricalCrossentropy()},
    optimizer=keras.optimizers.Adam(params.learning_rate),
    metrics={tgt_key: metrics},  # compute the metrics for `tgt_key`
)
model.summary()
save_callback = keras.callbacks.ModelCheckpoint(
    params.model,  # model file path (.keras file)
    save_best_only=True,  # save only the best models
    monitor="val_loss",  # metric or loss to monitor
    mode="min",  # when a new min is reached
    verbose=2,  # log something when saving
)
tb_callback = keras.callbacks.TensorBoard(log_dir=params.log_dir)
model.fit(
    ds_train,
    epochs=params.epochs,
    validation_data=ds_valid,
    callbacks=[save_callback, tb_callback],
)

Dig deeper 🚀¶

Early stopping callback¶

The early stopping callback enables to halt the process when the training stops improving.

Question

Use a keras.callbacks.EarlyStopping instance and append it to the callbacks list (keras documentation).
Observe the effect of the different parameters using tensorboard to monitor the losses and the moment training stops.
